Best Steel Wire Rope Core Conveyor Belt Manufacturer, Manufacturers

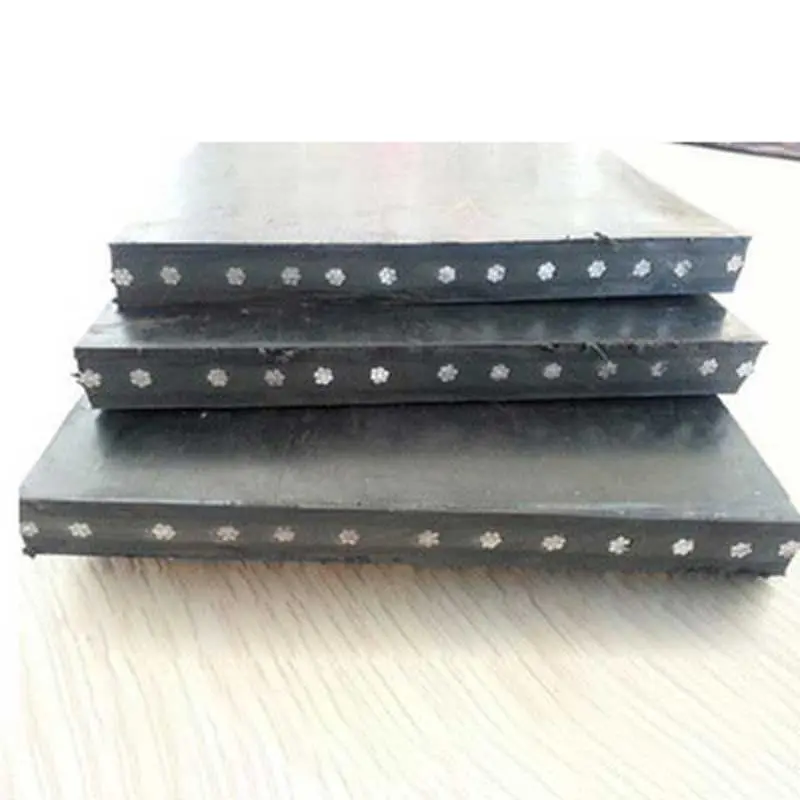

The steel wire core conveyor belt is made of rubber covered with steel wire core lining as the traction and carrying component of the belt conveyor. Characteristics of steel cord conveyor belt: high tensile strength, good impact resistance, long service life, low elongation during use, good groove forming ability, good flexural flexibility, suitable for long-distance, long-distance, and high-speed material transportation. This product is composed of core adhesive, steel wire rope, cover layer, and edge adhesive.

Widely used for transporting materials in coal, mining, ports, metallurgy, power, chemical and other fields.

According to the performance of the covering adhesive, it can be divided into ordinary type, flame retardant type, heat-resistant type, wear-resistant type, cold resistant type, acid alkali resistant type, oil resistant type and other varieties.

Product Description

Product Comparison

Folding ordinary structural steel wire rope core conveyor belt features:
Adopting a new type of structural steel wire rope as the tensile body, it has high tensile strength, low elongation, good groove forming ability, and good bending flexibility, suitable for long-distance, high-capacity, and high-speed material transportation.
Characteristics of Rubber Penetration in New Structural Steel Wire Rope
The core adhesive has sufficient penetration space to enter between each strand, and the bonding strength between rubber and steel wire rope is high, with good rust resistance, alleviating mutual shear and twisting between strands, and excellent dynamic fatigue resistance, giving the product a longer service life.
Tear resistant (horizontally reinforced) steel wire rope core conveyor belt
Structure: A new type of steel wire rope is used as the tensile body, with one or both sides perpendicular to the longitudinal steel wire rope, and reinforcement layers such as steel wire rope, steel wire cord, fiber rope, and fiber fabric evenly laid horizontally.

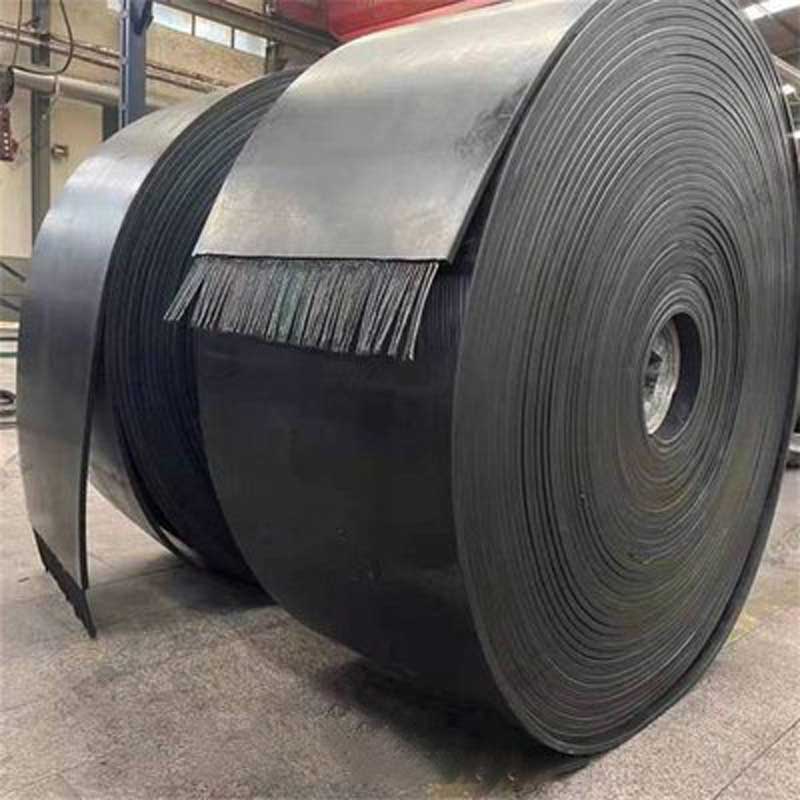

Steel-wire-rope-core-conveyor-belt2
Steel-wire-rope-core-conveyor-belt3

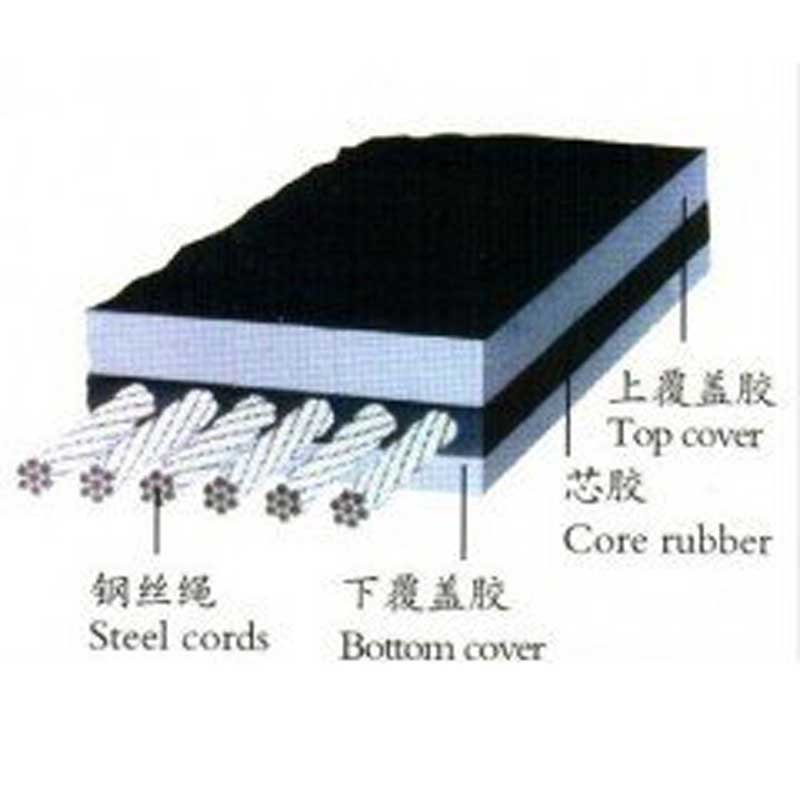

Steel-wire-rope-core-conveyor-belt1

Product Features

1
High tensile strength
Suitable for single machine large-span and long-distance material transportation.
2
High adhesion strength
The surface of the steel wire rope is galvanized, and a rubber material with excellent adhesion performance to the steel wire rope is used, which has high adhesion strength to the steel wire rope, impact resistance, no falling off, and long service life.
3
Uniform tension of steel wire rope
Adopting advanced manufacturing technology, the steel wire rope is arranged evenly, with consistent tension, smooth operation, and less likely to deviate.
4
Good grooving ability
The belt is soft and easy to form deep grooves, with a large amount of materials to be transported and less likely to scatter.
5
Small diameter of transmission spoke
The belt core is composed of a layer of longitudinally arranged steel wire rope as the skeleton, which has excellent resistance to bending and fatigue performance. It can be configured with smaller diameter wheels, making the belt conveyor equipment compact.
6
Use low elongation
The belt conveyor requires a short tightening stroke.
7
Safety Inspection
X-ray inspection can be used to prevent safety accidents.

Frequently Asked Questions

What are the advantages of using structural steel wire rope in conveyor belts?
Structural steel wire rope provides the conveyor belt with high tensile strength, low elongation, excellent groove forming ability, and superior bending flexibility. This makes the belt ideal for long-distance, high-capacity, and high-speed material transportation.
How does rubber penetration benefit the steel wire rope core?
The new core adhesive design allows sufficient space to penetrate between each steel strand. This creates high bonding strength between the rubber and steel wire, offering excellent rust resistance, reducing mutual shear and twisting, and significantly extending the service life of the belt.
What makes the conveyor belt tear-resistant?
The tear-resistant model features a longitudinal steel wire rope core reinforced with horizontal layers. These perpendicular reinforcement layers consist of steel wire rope, steel wire cord, fiber rope, and fiber fabric evenly laid on one or both sides to prevent tears.
Why does this conveyor belt allow for a smaller transmission spoke diameter?
The belt core is designed with a single layer of longitudinally arranged steel wire rope as its skeleton, which provides exceptional resistance to bending and fatigue. This allows the system to utilize smaller diameter pulleys, keeping the overall conveyor equipment compact.
How is the safety of the steel wire rope core monitored?
The construction of the belt allows for X-ray inspection. This enables operators to non-destructively monitor the internal condition of the steel wire rope core and proactively prevent safety accidents.
Does the conveyor belt stretch significantly during operation?
No, the steel wire rope core design ensures very low elongation. Consequently, the conveyor system only requires a short tightening stroke, reducing maintenance requirements and setup space.
