Best Anti-Tear Steel Wire Rope Core Conveyor Belt from China Suppliers & Factory - High Strength, Flame Retardant Features Manufacturer, Supplier
1 / 3
Best Anti-Tear Steel Wire Rope Core Conveyor Belt from China Suppliers & Factory - High Strength, Flame Retardant Features Manufacturer, Supplier
Introducing our advanced anti-tear steel wire rope core conveyor belt, expertly designed and manufactured in China by leading suppliers in the industry. This high-quality rubber conveyor belt features a robust steel wire skeleton that enhances its anti-tear capabilities, ensuring reliable performance in demanding applications, Our steel wire rope lifting belt is engineered for superior tensile strength and outstanding impact resistance. With a long service life and minimal elongation during operation, it is perfect for long-distance, high-speed material transportation. Its excellent groove forming ability and exceptional flexural flexibility make it a preferred choice for various industries, Additionally, our flame retardant conveyor belt utilizes a steel wire rope core, combined with a specially formulated rubber cover layer infused with flame retardant properties. Designed for use in hazardous environments where flammable and explosive materials are present, this conveyor belt complies with stringent anti-static and flame retardant standards. Trust the expertise of our factory in China for all your conveyor belt needs
The anti tear steel wire rope core conveyor belt is a rubber conveyor belt with steel wire as the skeleton and anti tear performance. Here is a detailed introduction:
Structural features: A horizontally uniformly arranged high elongation steel wire rope or high-strength high elongation synthetic wire rope is set on top (or up and down) of the steel wire rope core as an anti tear layer. The anti tear layer is perpendicular to the direction of the conveyor belt, which can effectively block sharp hard objects from piercing and resist tearing.
Performance advantages: It has the advantages of high tensile strength, good impact resistance, long service life, small elongation during use, good slotting ability, and good flexural flexibility. It can withstand long-distance, long-distance, and high-speed material transportation.

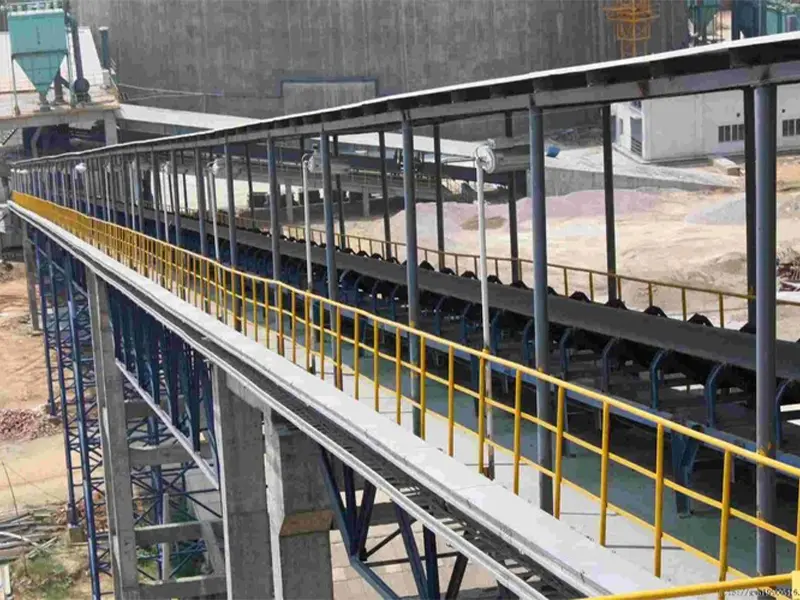

Application scenario: Suitable for material transportation in industries such as coal mines, mines, ports, power, metallurgy, and building materials that require tear resistance. The anti tear steel wire rope core conveyor belt model is labeled in two categories, with the core model consisting of strength grade, bandwidth, and structural features.
National Standard (HG/T3646): Starts with ST/S (ST represents steel wire rope core, S represents tear resistance characteristics). Complete model example: ST1000S-1200, where the number after ST is the longitudinal tensile strength (N/mm), and the last number is the width (mm).
Subdivided Models by Structure: Distinctions based on the material of the transverse anti tear layer, such as ST-S (chemical fiber rope anti tear), ST-G (steel wire rope anti tear), and derivative models for special conditions like ST1600S-F (wear-resistant type) and ST2000S-H (high temperature resistant type).
Common Strength Levels & Widths: Strength levels: ST1000, ST1250, ST1600, ST2000, ST2500, ST3150, ST4000. Common bandwidths: 650mm, 800mm, 1000mm, 1200mm, 1400mm, etc.
Wire rope core lifting belt

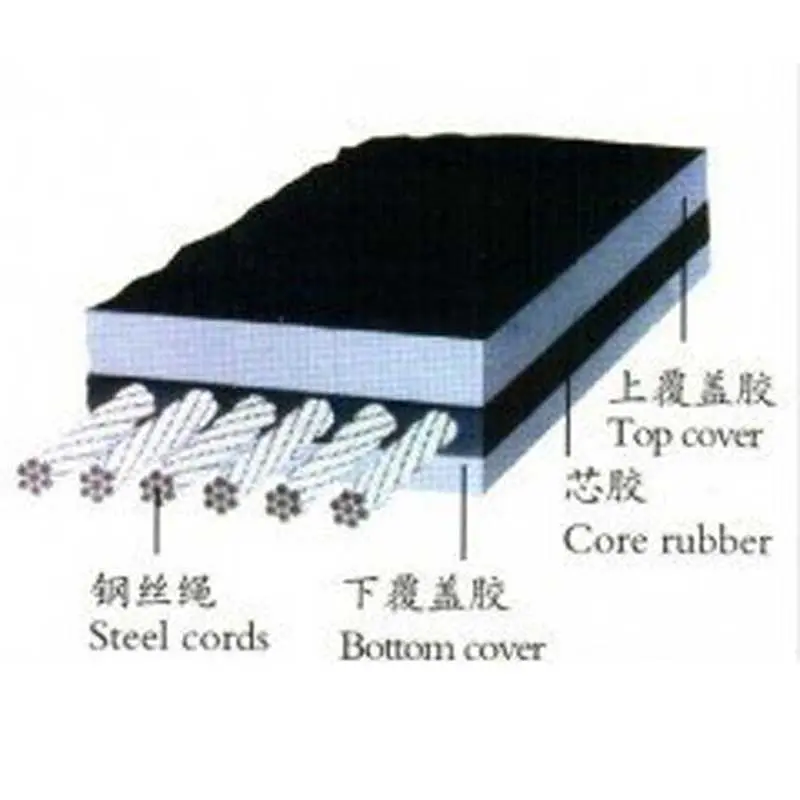

The steel wire rope lifting belt has high tensile strength, good impact resistance, long service life, small elongation during use, good groove forming ability, and good flexural flexibility. It is suitable for long-distance, long-distance, and high-speed material transportation. This product is composed of core adhesive, steel wire rope, cover layer, and edge adhesive.
Usage: Widely used for transporting materials in coal, mining, building materials and cement, ports, metallurgy, electricity, chemical industry and other fields.
Classification by Covering Adhesive: Ordinary steel wire rope lifting belt, flame-retardant, heat-resistant, wear-resistant, cold resistant, acid alkali resistant, and other varieties.
Classification by Internal Structure: Ordinary structure type, transverse reinforcement type, and pre embedded coil tear resistant type.
Steel wire rope core flame-retardant conveyor belt
The steel wire rope core flame retardant conveyor belt is made of steel wire rope as the tensile skeleton and rubber cover layer with added flame retardant. The core is used in working conditions with flammable and explosive risks, and meets the dual requirements of anti-static and flame retardant.
Model Labeling: Labeled based on ST (steel wire rope core) + tensile strength + Z (flame retardant label) + belt width, such as ST1250Z-1000. Common execution standard is MT668. Tensile strength grade ranges from ST1000 to ST4000. Belt width is usually 650 to 1400mm.
Performance & Safety: High tensile strength, impact resistance, and good grooving performance. It prevents flame spread, reduces static electricity accumulation, and avoids ignition of surrounding materials.
Application Areas: Primarily used in underground coal mines, chemical transportation of flammable and explosive materials, and other specialized scenarios requiring wear, tear, or oil resistance.
Frequently Asked Questions
Q:How does the anti-tear layer protect the steel wire rope core conveyor belt?
The anti-tear layer consists of a horizontally uniformly arranged high elongation steel wire rope or synthetic rope set perpendicular to the conveyor belt direction. This structure effectively blocks sharp, hard objects from piercing the belt and prevents tearing.
Q:What are the national standard designations for anti-tear steel wire rope core conveyor belts?
According to standard HG/T3646, they are labeled starting with ST/S (where ST indicates steel wire rope core and S represents tear resistance). A model like ST1000S-1200 indicates a longitudinal tensile strength of 1000 N/mm and a width of 1200 mm.
Q:What components make up a steel wire rope core lifting belt?
The steel wire rope core lifting belt is composed of the core adhesive, steel wire rope, cover layer, and edge adhesive.
Q:What covering adhesive options are available for wire rope core lifting belts?
Depending on the application, they can be divided into ordinary, flame-retardant, heat-resistant, wear-resistant, cold-resistant, and acid-alkali resistant varieties.
Q:Where are flame-retardant steel wire rope core conveyor belts required?
They are primarily used in underground coal mines and chemical transport environments where there are flammable and explosive risks. They meet dual requirements for anti-static performance and flame-retardancy to prevent surrounding material ignition.
